FHX

FHX

Opis ON/OFF fan coils with a germicidal lamp for heating, cooling and dehumidification. Can be installed on 2-pipe or 4-pipe systems and combined with any heat generator.

  • Wydajność chłodnicza: 1.5 ÷ 7.4 kW
  • Wydajność grzewcza: 3.4 ÷ 15 kW
  • Cooling and heating
  • Cooling and heating
  • Floor installation
  • Floor installation
  • Wall installation
  • Wall installation
  • Ceiling installation
  • Ceiling installation
  • Network operation (Option)
  • Network operation (Option)
  • Compatible with VMF system (Variable Multi Flow) (Option)
  • Compatible with VMF system (Variable Multi Flow) (Option)
  • For two pipes plants
  • For two pipes plants

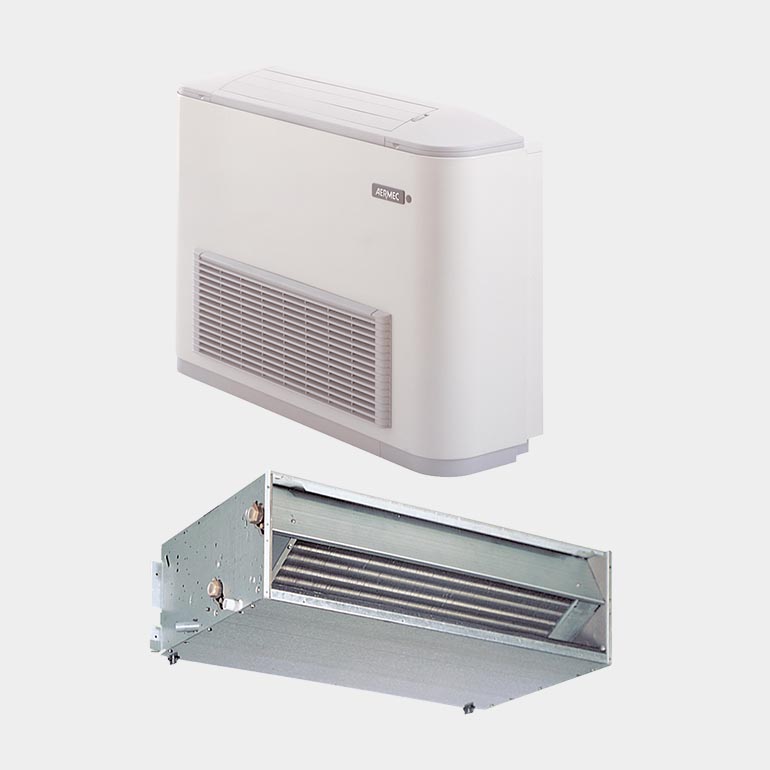

The units of the FHX range are fan coils with a built-in germicidal lamp. They're designed for air-conditioning in places that require optimum hygiene levels. Available with various configurations depending on the installation position, they have a multispeed motor (including 3 selectable speeds). ABS fans with an impeller with wing-shaped fins and an Archimedean screw that can be inspected. This material ensures a notable noise reduction as well as reduced electricity consumption by the motor in comparison with traditional metal fans. The unit can be fitted with a single/double heat exchange coil (2- or 4-pipe system), with 3/4 rows depending on the model. It can also be equipped with various accessories and integrated in the VMF - Aermec centralised hydronic management system.
